Foto-elektrische samengestelde kabels
>
12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km

12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km

Brand Name: HXCOWO
Model Number: HX-DL2
MOQ: 1000 meter
Prijs: Negotiable
Packaging Details: Houten schacht+Export kartonnen doos
Detailinformatie
Plaats van herkomst:
Guangdong, China
Certificering:
RoHS
Type:
Kabel voor voedingsvezels
Aantal dirigenten:
≥ 10
Naam van het product:
OPGW-vezelkabel
Toepassing:
Telecommunicatiemededeling
Lange:
Aangepaste lengte
Fibre-type:
G652D/G657A1/G657A2
Pakket:
Houten trommel
Fibergetal:
2-288 kernen
Sleutelwoord:
Hoge snelheid
Werktemperatuur:
40~+70
Diensten:
OEM ODM keurt goed
Haven:
Shenzhen
Levering vermogen:
1500000 Stuk/Stukken per Maand
Hoog licht:

OPPC Armoured Fiber Optic Cable

,

OPGW Armoured Fiber Optic Cable

,

5km Armoured Fiber Cable

Productomschrijving

12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km for Power

TECHNICAL PARAMETERS



Cross-Sectional Area
(mm²)
Rated Breaking Force
(kn)
Fiber Cable Diameter
(mm)
Fiber Cable Weight
(kg/km)
40
54
8.7
313
50
61.4
9.6
348
60
62.7
10.8
391
70
80.8
11.4
478
80
84.6
12
538
90
57.3
12.6
587
PRODUCT FEATURES



①Using advanced stainless steel pipe production technology, the pipe is filled with water-blocking compounds



②The short-circuit current causes little mutual interference between the power grid and the communication network



③The remaining length of the optical fiber and the cable core twisting pitch ensure that the optical cable is not stressed when operating at maximum tension



④Compact structure, high tensile strength



⑤The specifications are similar to commonly used ground wires, and the installation is very convenient and can directly replace the original ground wires



PRODUCT DESCRIPTION
12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km 0

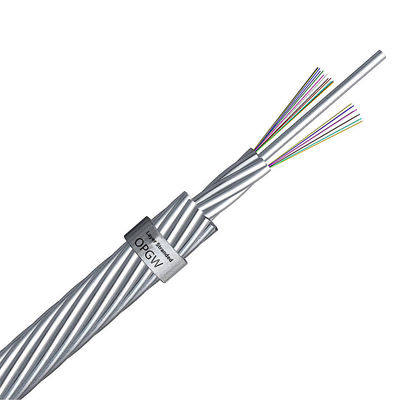

POWER FIBER OPTIC CABLE OPGW

High-speed and stable transmission
OPGW model cross-section optional: 30/40/50/60/70/80/90/100

12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km 1

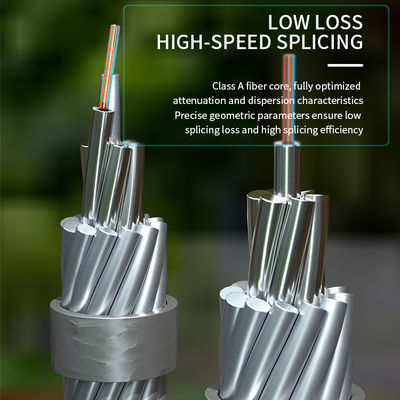

LOW LOSS, HIGH-SPEED SPLICING
Class A fiber core, fully optimized attenuation and dispersion characteristics
Precise geometric parameters ensure low splicing loss and high splicing efficiency
12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km 2

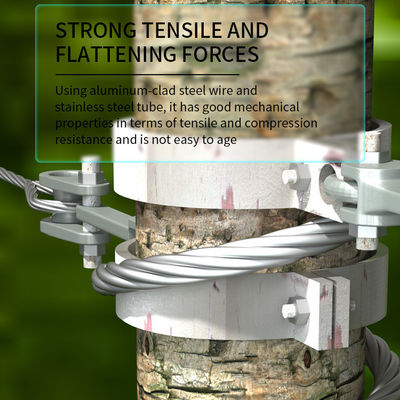

STRONG TENSILE AND FLATTENING FORCES
Using aluminum-clad steel wire and stainless steel tube, it has good mechanical properties in terms of tensile and compression resistance and is not easy to age
12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km 3

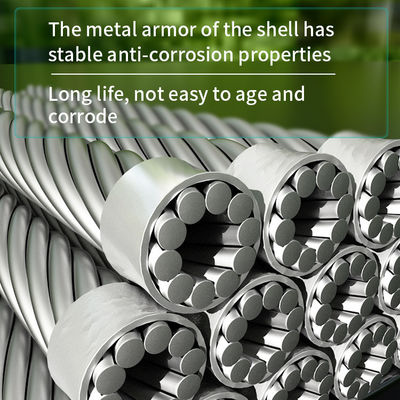

The metal armor of the shell has stable anti-corrosion properties
Long life, not easy to age and corrode
12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km 4

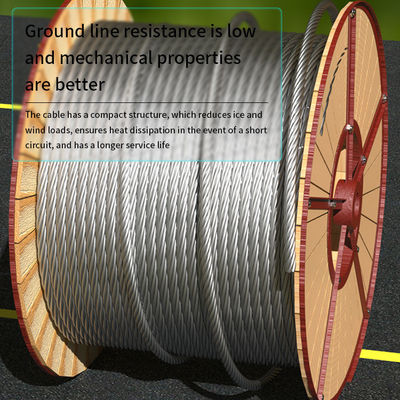

GROUND LINE RESISTANCE IS LOW AND MECHANICAL PROPERTIES ARE BETTER

The cable has a compact structure, which reduces ice and wind loads, ensures heat dissipation in the event of a short circuit, and has a longer service life
12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km 5

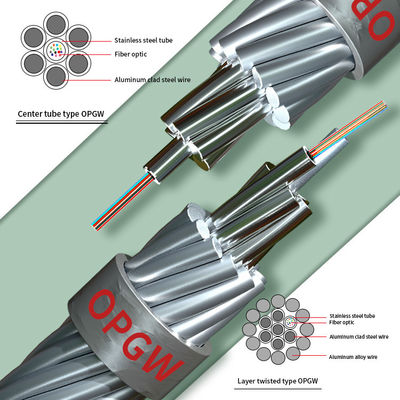

OPGW STRUCTURE DIAGRAM
Stainless steel tube
Fiber optic
Aluminum clad steel wire

12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km 6
PRODUCT DESIGN
12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km 7
Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”
12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km 8
COMPANY PROFILE

12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km 9
Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !
SERVICE & PRODUCTION CAPACITY
12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km 10
FOREIGN EXHIBITIONS
12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km 11
COOPERATIVE BRAND & CERTIFICATION
12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km 12
PAYMENT & TRANSPORTATION METHOD
12 Core Aerial OPGW OPPC Armoured Fiber Optic Cable G652D G655 5km 3km 2km 13
FAQ
1. Are you the real manufacturer?
Yes.  We are the real manufacturer  with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
