Single-mode Multi-mode Jumper Patchcord SC-SC Armor Fiber Optic Patch Cord Voor FTTH

Merknaam:	HXCOWO
Model Number:	HZ-KZT1
MOQ:	100 stuks
Prijs:	negotiable
Verpakking:	OPP-zak+Export kartonnen doos

Detailinformatie

Productomschrijving

Detailinformatie

Plaats van herkomst:

Guangdong, China

Certificering:

ROHS/ISO9001

Type:

Optische vezel-patch cord

Gebruik:

Garantietijd:

1 jaar

Netwerk:

Draadloos LAN, wifi, 4G, Wiegand

Type aansluiting:

SC/FC/LC/ST

Buitenjas:

PVC/LSZH/OFNP

Armoringstype:

Spiraalstaal gewapende wapens

Naam van het product:

glasvezel patchkabel

Toepassing:

Kleur:

Gepersonaliseerde kleuren

Fibre-type:

G652D/G657A1/G657A2/OM1/OM2/OM3/OM4

Waallengte:

850nm/1310nm/1550nm

Diensten:

24 uur online dienst

Haven:

Shenzhen

Levering vermogen:

1500000 Stuk/Stukken per Maand

Markeren:

Multi-mode glasvezel patch cord

FTTH-Koord van het Vezel het Optische Flard

Sc-Sc Koord van het Vezel het Optische Flard

Productomschrijving

PRODUCT PARAMETERS
Connector model	SC/FC/LC/ST
Storage temperature	-10 ° C+40 ° C
Fiber optic cable structure	Single core/Double core/Bundle shape/Flat strip
Bending radius	15×H (H fiber optic cable diameter)
Fiber optic cable diameter	0.9/2.0/3.0/6.5mm in diameter
Working wavelength	single mode 1310-1550nm/multimode 850nm
Fiber optic cable material	PVC/LSZH
Insertion loss	≤ 0.35dB
Product length	Customizable
Return loss	Single mode UPC ≥ 50dB, APC ≥ 60dB
Ferrule end face structure	UPC/APC
Interchangeability	≤ 0.2dB
Tensile strength	>70N
Number of plugging and unplugging	>1000 times
Fiber type	G652D/G657A1/G657A2/0M1/0M2/0M3/0M4
Working temperature	-25 ℃+70 ℃
Ferrule	Ceramic ferrule

PRODUCT DESCRIPTION

ARMORED FIBER OPTIC PATCH CORD

Anti-rodent bite, tensile, compressive, flame retardant

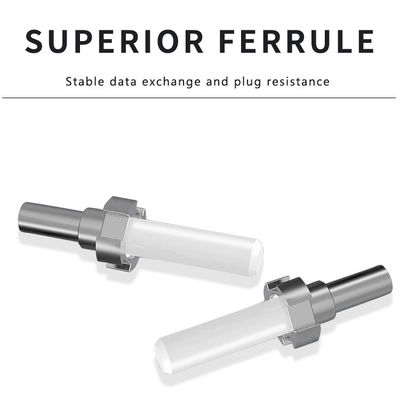

SUPERIOR FERRULE

Stable data exchange and plug resistance

ULTRA-STRONG COMPRESSION AND TENSILE

Each undergoes rigorous testing

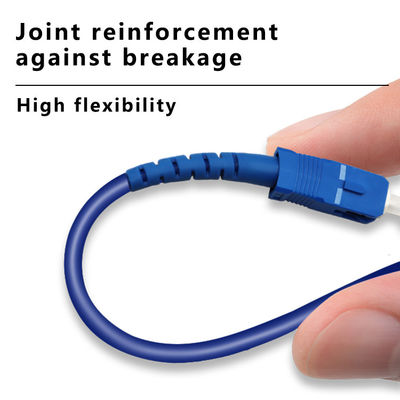

JOINT REINFORCEMENT AGAINST BREAKAGE

High flexibility

YOU ARE DESERVED TO HAVE IT

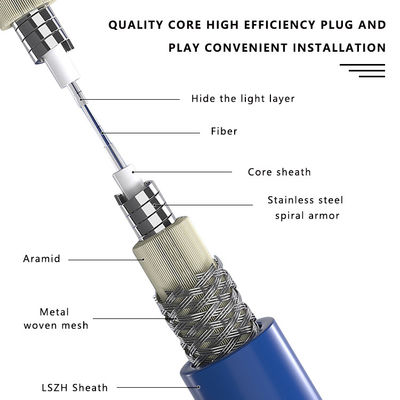

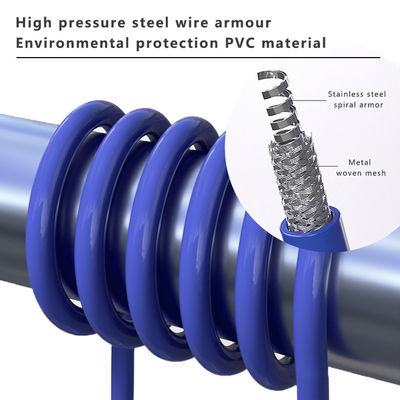

The patch cord is equipped with multi-layer protection such as metal woven mesh, aramid, stainless steel spiral armor, etc

LOW SMOKE ZERO HALOGEN(LSZH) SHEATH

High-temperature resistance, no deformation, anti-pulling, anti-detachment, environmentally friendly

LOW LOSS, RAPID TRANSMISSION

Each undergoes rigorous testing

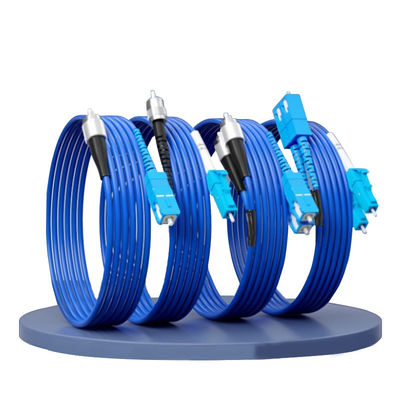

PRODUCT EXHIBITION

Free choice, customised colours

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables.

With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
