Goede prijs online

details van de producten

Huis > Producten >
Openlucht Gepantserde Vezel Optische Kabel
>
Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards
Alle Categorieën

Openlucht Gepantserde Vezel Optische Kabel

Innen- en buitenverzorgde vezels

Tactische Vezel Optische Kabel

Foto-elektrische samengestelde kabels

Buitenaardse glasvezelkabel

Innenoptische glasvezelkabel

Optische vezel-patch cord

Vezel Optische Vlecht

vezel optische toebehoren

met een diameter van niet meer dan 30 mm

Glasvezel patchpaneel

glasvezel splitter

vezel optische module
Contacteer ons
sales@hxfiber.com
Contact nu
Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards
  • Naam
  • Naam
  • Naam
  • Naam
  • Naam
  • Naam

Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards

Merknaam: HX
Modelnummer: HX-GL2
MOQ: 1
Detailinformatie
Productomschrijving
Detailinformatie
Plaats van herkomst:
Guangdong, China
Certificering:
CE/ROHS/ISO9001
Aantal geleiders:
≥ 10
Kabelkleur:
Zwart
Jas materiaal:
PE-jas
Kabelstructuur:
Meervoudig losse buis
Vezelopties:
Itu G652D, G657A, Om1, Om2, Om3, Om4
Krachtlid:
Centrale staaldraad of glasvezelversterkt kunststof (FRP)
Afzwakking @1310 nm:
≤ 0,36 dB/km
Verzwakking @1550 nm:
≤ 0,22 dB/km
Bandbreedte @850nm:
≥500 MHz*km
Bandbreedte @1300nm:
≥1000 MHz*km
Numerieke opening:
0,200 ± 0,015 NA
Snijd golflengte af:
≤ 1260 nm
Opslagtemperatuur:
-40 ° C tot +70 ° C
Trekkracht:
600/1500 N
Buigradius:
10D/20D
Markeren:

ITU G652D/G657A/OM1-OM4 Armored Fiber Optic Cable

,

YD/T901-2009 & IEC 60794-1 Standards Armored Fiber Optic Cable

,

Underground Armored Fiber Optic Cable

Productomschrijving

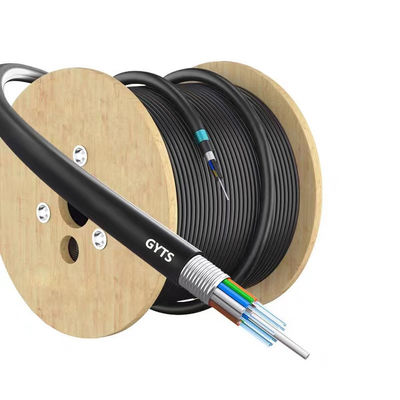

Underground Single Mode Rodent Proof GYTA/GYXTW/GYTS/GYFTS Quality Direct Buried Communication Armored Fiber Optical Cable
Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards 0 Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards 1 Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards 2 Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards 3
Technical Specifications
Parameter G.652 G.655 50/125 μm 62.5/125 μm
Attenuation (+20°C)
@850nm ≤3.0dB/km ≤3.3dB/km
@1300nm ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km ≤0.40dB/km
@1550nm ≤0.22dB/km ≤0.23 dB/km
Bandwidth (A-level) ≥500 MHz*km ≥200 MHz*km
@1300nm ≥1000 MHz*km ≥600 MHz*km
Numerical aperture 0.200±0.015NA 0.275±0.015NA
Optical fiber cable cut-off wavelength ≤1260nm ≤1450nm

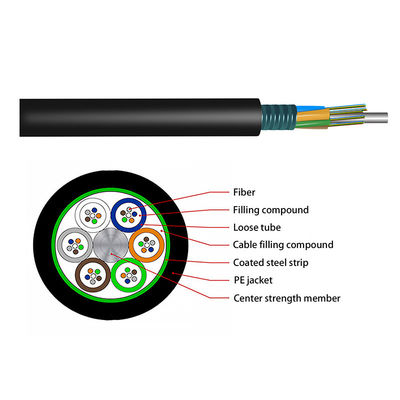

Fiber Optic Cable Configuration
Type Number of fibers Number of casings Number of filling ropes Diameter (mm)
GYTA-2~6 2~6 1 4 9.2
GYTA-8~12 8~12 2 3 9.2
GYTA-14～18 14~18 3 2 9.2
GYTA-20~24 20~24 4 1 9.2
GYTA-26~30 26~30 5 0 9.2
GYTA-32~36 32~36 6 0 9.7
GYTA-38～48 38~48 4 1 10.5
GYTA-50~60 50~60 5 0 10.5
Mechanical Properties
Weight (kg/km) Allowable tensile force (N) Allowable flat pressure (N/100mm) Bending radius (mm)
80 600/1500 300/1000 10D/20D
*Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)
Key Characteristics
  • Steel jacket offers high tension and crush resistance

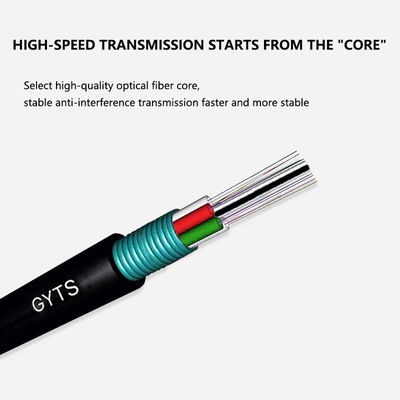

  • Special gel in the tube offers critical protection for the fibers

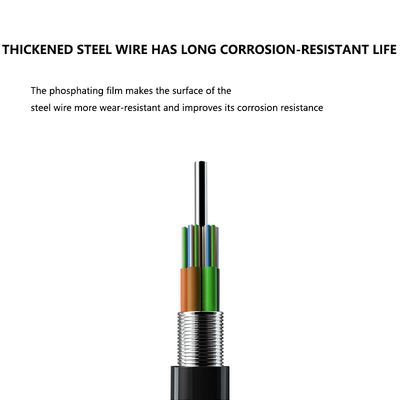

  • With steel central strength member

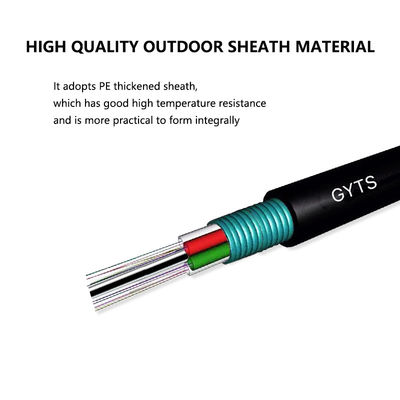

  • PE jacket prevents UV damage (UV-resistant material can be added)
  • Performs well under high and low temperatures
  • Anti-aging properties
Applications
  • Conduit/buried installations
  • Connecting communication equipment
  • Multi-core wiring systems in data centers
Standards Compliance
  • GYTS complies with YD/T901-2009 and IEC 60794-1 standards
Frequently Asked Questions
1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!
2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.
3. Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4. Can you customize the product?
Yes, we can customize according to your requirements (logo, package, printing and so on).
5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.
Markeringen:

gewapende buitenkabel

Gepantserde optische kabel

Gepantserde multimode glasvezelkabel

Goede prijs online

Details Van De Producten

Huis > Producten >
Openlucht Gepantserde Vezel Optische Kabel
>
Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards
Alle Categorieën

Openlucht Gepantserde Vezel Optische Kabel

Innen- en buitenverzorgde vezels

Tactische Vezel Optische Kabel

Foto-elektrische samengestelde kabels

Buitenaardse glasvezelkabel

Innenoptische glasvezelkabel

Optische vezel-patch cord

Vezel Optische Vlecht

vezel optische toebehoren

met een diameter van niet meer dan 30 mm

Glasvezel patchpaneel

glasvezel splitter

vezel optische module
Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards
  • Naam
  • Naam
  • Naam
  • Naam
  • Naam
  • Naam

Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards

Merknaam: HX
Modelnummer: HX-GL2
MOQ: 1
Detailinformatie
Productomschrijving
Detailinformatie
Plaats van herkomst:
Guangdong, China
Merknaam:
HX
Certificering:
CE/ROHS/ISO9001
Modelnummer:
HX-GL2
Aantal geleiders:
≥ 10
Kabelkleur:
Zwart
Jas materiaal:
PE-jas
Kabelstructuur:
Meervoudig losse buis
Vezelopties:
Itu G652D, G657A, Om1, Om2, Om3, Om4
Krachtlid:
Centrale staaldraad of glasvezelversterkt kunststof (FRP)
Afzwakking @1310 nm:
≤ 0,36 dB/km
Verzwakking @1550 nm:
≤ 0,22 dB/km
Bandbreedte @850nm:
≥500 MHz*km
Bandbreedte @1300nm:
≥1000 MHz*km
Numerieke opening:
0,200 ± 0,015 NA
Snijd golflengte af:
≤ 1260 nm
Opslagtemperatuur:
-40 ° C tot +70 ° C
Trekkracht:
600/1500 N
Buigradius:
10D/20D
Min. bestelaantal:
1
Markeren:

ITU G652D/G657A/OM1-OM4 Armored Fiber Optic Cable

,

YD/T901-2009 & IEC 60794-1 Standards Armored Fiber Optic Cable

,

Underground Armored Fiber Optic Cable

Productomschrijving
Underground Single Mode Rodent Proof GYTA/GYXTW/GYTS/GYFTS Quality Direct Buried Communication Armored Fiber Optical Cable
Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards 0 Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards 1 Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards 2 Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards 3
Technical Specifications
Parameter G.652 G.655 50/125 μm 62.5/125 μm
Attenuation (+20°C)
@850nm ≤3.0dB/km ≤3.3dB/km
@1300nm ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km ≤0.40dB/km
@1550nm ≤0.22dB/km ≤0.23 dB/km
Bandwidth (A-level) ≥500 MHz*km ≥200 MHz*km
@1300nm ≥1000 MHz*km ≥600 MHz*km
Numerical aperture 0.200±0.015NA 0.275±0.015NA
Optical fiber cable cut-off wavelength ≤1260nm ≤1450nm
Fiber Optic Cable Configuration
Type Number of fibers Number of casings Number of filling ropes Diameter (mm)
GYTA-2~6 2~6 1 4 9.2
GYTA-8~12 8~12 2 3 9.2
GYTA-14～18 14~18 3 2 9.2
GYTA-20~24 20~24 4 1 9.2
GYTA-26~30 26~30 5 0 9.2
GYTA-32~36 32~36 6 0 9.7
GYTA-38～48 38~48 4 1 10.5
GYTA-50~60 50~60 5 0 10.5
Mechanical Properties
Weight (kg/km) Allowable tensile force (N) Allowable flat pressure (N/100mm) Bending radius (mm)
80 600/1500 300/1000 10D/20D
*Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)
Key Characteristics
  • Steel jacket offers high tension and crush resistance
  • Special gel in the tube offers critical protection for the fibers
  • With steel central strength member
  • PE jacket prevents UV damage (UV-resistant material can be added)
  • Performs well under high and low temperatures
  • Anti-aging properties
Applications
  • Conduit/buried installations
  • Connecting communication equipment
  • Multi-core wiring systems in data centers
Standards Compliance
  • GYTS complies with YD/T901-2009 and IEC 60794-1 standards
Frequently Asked Questions
1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!
2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.
3. Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4. Can you customize the product?
Yes, we can customize according to your requirements (logo, package, printing and so on).
5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.
Markeringen:

gewapende buitenkabel

Gepantserde optische kabel

Gepantserde multimode glasvezelkabel
